GSE Self-propelled passenger Boarding stairs for aircrafts

Availability:
Quantity:
Inquire Add to Basket

  • CM-AGE-KT

  • CHEERSMETAL

Introduction

Airport passenger stairs play an important role in ensuring efficient and comfortable boarding and disembarkation for passengers, especially in situations where aerobridges are not available or practical. They provide a flexible solution for aircraft parked on remote stands and contribute to the overall passenger experience at airports.

Key features of airport passenger stairs include:

Adjustable Height: Passenger stairs are designed with adjustable heights to accommodate different types of aircraft with varying door heights.

Safe Steps: The stairs are equipped with safe and sturdy steps, handrails, and non-slip surfaces to ensure passenger safety during boarding and disembarkation.

Platform or Cabin: Some passenger stairs have a platform at the top that connects to the aircraft door, while others have a cabin for the operator to control the movement and positioning of the stairs.

Product Description
Name
GSE Self-propelled stairs，airport passenger Boarding stairs
Chassis type
ISUZU
Engine type
ISUZU
Overall dimension (length×width×height) (mm)
7990×2400×3691
Wheelbase (mm)
3815
Curb weight (kg)
8400
Min height of Ground clearance (mm)
2400
Max height of Ground clearance (mm)
5800
Size of platform (length×width) (mm)
3350*2200
Minimal curve radius (m)
15
Allowed maximum running speed (km/h)
40
Maximum load-bearing (person)
70
Front Axle Load (kg)
2850
Rear Axle Load (kg)
4600

Which Aircraft Models are our passenger stair applied for?

The designed height is from 2400mm to 5800mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, height of stair platform could reach 5800mm after slight adjustment, this type of passengers stair could be applied for A310, A320, A330, A340, B737, B747, B757, B767, B777 & etc.
Detailed Images

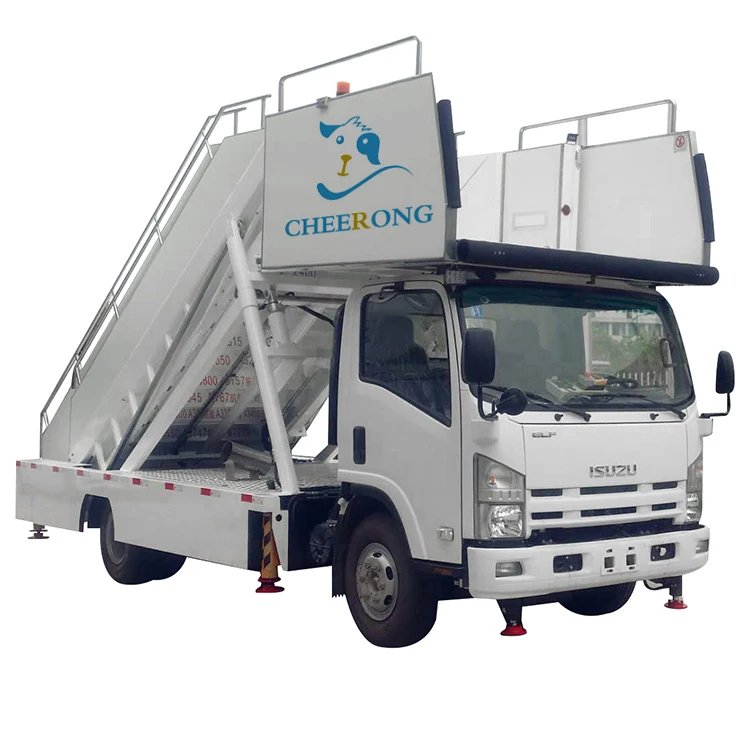

Detailed Image of  GSE Self-propelled passenger Boarding stairs
Product packaging

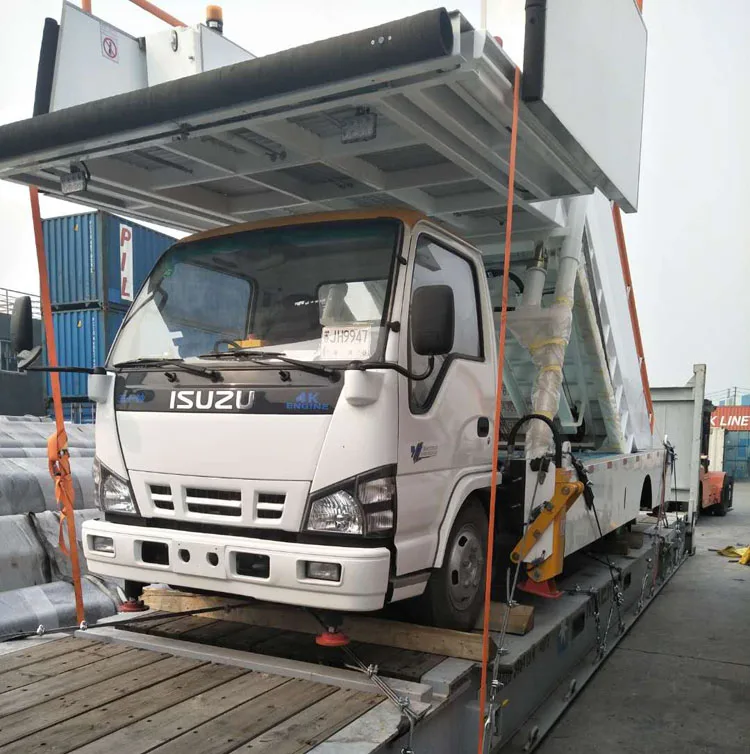

Packing of GSE Self-propelled passenger Boarding stairs
It's packed by frame container, the freight fee is a little higher compared with standard shipping container.

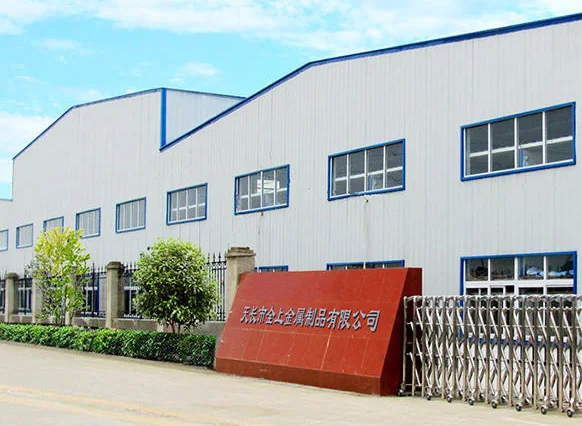

Company Introduction

Excellent qulity & fast delivery

We are specializing in the production of GSE Self-propelled passenger Boarding stairs
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time for GSE Self-propelled passenger Boarding stairs?
A: It's depend on your quantity requirement & when you make order, generally, it's 3~4 months.

Q: Do you provide samples for GSE Self-propelled passenger Boarding stairs? Warranty?
A: No, but you are welcome to visit our factory or I can show you some of our sales record.
The standard warranty is one year.

Q: What is your terms of payment for GSE Self-propelled passenger Boarding stairs?
A: 30% T/T in advance ,balance before shippment.
Question For Fast Quotation
Q1: Do you need Airport Aircraft Passenger Stairs with Maximum load-bearing 60 peoples or 70 peoples at the same time?

Q2: How many do you need?

Q3: Need we arrange shipment for you? if yes, tell us name of discharge port.

Wecome to contact us at any time.
